The dental team and the floor plan

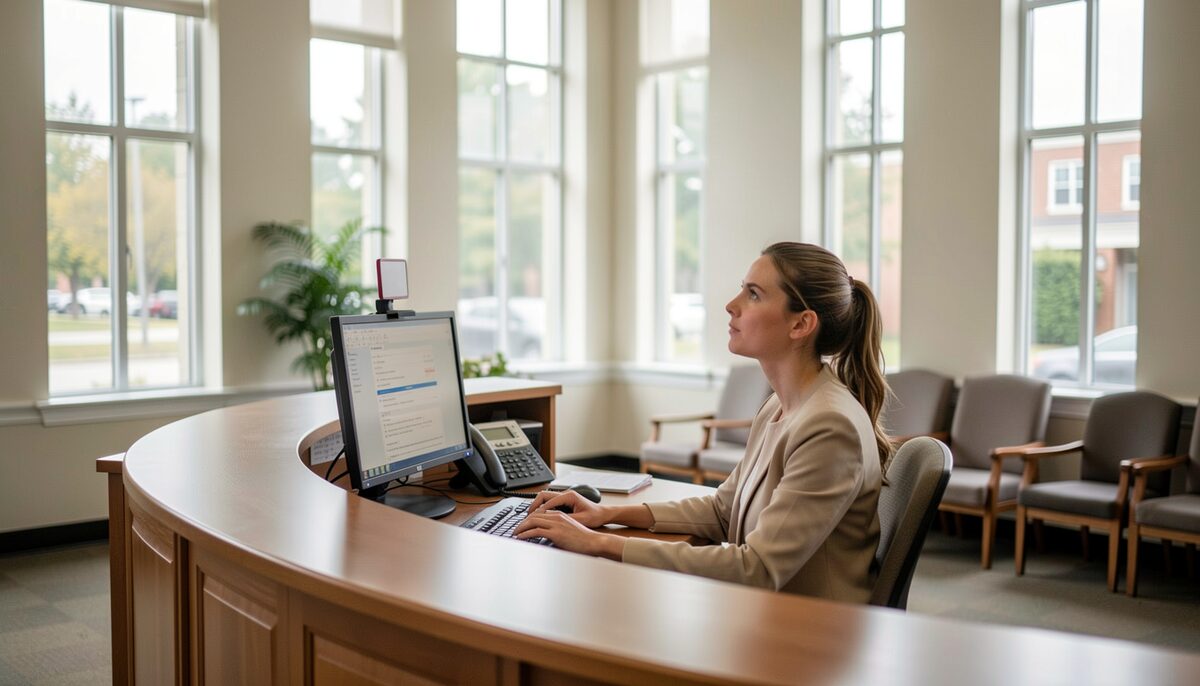

The front team is the only group that must watch two directions at once. It has to see the entrance so a patient is greeted before they wonder where to go, and it has to see the schedule and the clinical corridor so it knows when a room is free. If the desk is buried behind a wall, staff walk out to check the waiting room, and every one of those trips is a small interruption to a phone call or a claim. If the desk is wide open, every conversation about money happens in front of the next patient.

Most plans resolve this with a desk that has a clear sightline to the entry and a screened work zone behind it. What the front team must see, and what it must be able to hide, is the whole design question at reception, and it is worked through in the notes on the front desk.

The assistant is the role that travels most. Between patients, that person is not walking to one place but to three: the sterilization area for instruments, the supply storage for consumables, and the treatment room for the next setup. Put those three points far apart and you have built a daily walk that no one budgeted for.

This is the strongest argument for a plan where treatment rooms cluster around a shared sterilization and supply core rather than lining a long corridor. The distance from the furthest room to the core sets the length of every turnover. It also sets how often two staff members meet head on in the same doorway with a loaded tray.

The dentist moves less than the assistant but needs more information at each stop. The position at the chair demands a clear view of the patient, the monitor, the light and the assistant's hands, which fixes the orientation of the room and the position of the delivery system. A room that is right for a left handed operator is not the same room as one built for a right handed operator, and retrofitting that later means moving equipment, not just furniture.

The dentist also needs to move between rooms without walking through the waiting area in clinical gloves. That single rule, no clinical traffic through the front of house, drives more corridor decisions than any other requirement in a dental plan.

Doors and glazing into a treatment room have to do two opposite jobs. Staff in the corridor need to read whether a room is occupied, clean or mid procedure without opening the door. The patient in the chair needs to feel that the room is not on display to the waiting room.

Sidelights, half glazing and offset doors can satisfy both, but only if the room is oriented so the chair is not in the line of the entry. Which way the chair faces, where the entry sits and what the corridor sees are among the core treatment room planning decisions in detail, and they are decided before the equipment order, not after.

Hygiene runs longer appointments with a different rhythm. The hygienist reaches repeatedly into the same zone for handpieces, scalers and suction, and often works from a seated position for far longer stretches than the dentist does. A room designed only around a dentist's setup will leave that position straining sideways all day.

Ergonomics here is not a cushion or a stool, it is the geometry of the room. Instrument trays, delivery and the assistant's position all sit inside defined ergonomic reach zones, and a hygiene room that ignores them will be felt in the shoulders before it is noticed in the plan.

The practice manager handles payroll, insurance correspondence and staff scheduling. Almost none of that work needs a clinical view, but all of it needs a door that closes. Placing the manager at the front desk puts billing questions in the middle of patient check in. Placing the manager in a back office removes the person who often answers the phone and handles the awkward conversations.

The usual answer is a small enclosed office close enough to reception to be found, far enough to be private. The ADA page notes that the profession's practice guidance covers insurance issues and patient safety standards, which is exactly the paperwork a manager spends a working week on. How practices divide those duties is covered in dental team roles more broadly.

Sterilization is a one way street. Contaminated instruments come in, clean instruments go out, and those two paths must not cross, in time or in space. That sets a plan requirement: separate entry and exit points for the sterilization area, or at least separate benches at each end of it, so a clean tray is never set down where a used one has just been.

The Occupational Safety and Health Administration states that there are currently no specific OSHA standards for dentistry, and that dental hazards including bloodborne pathogens, chemicals and ergonomic strain are addressed through general industry standards. The practical result for a plan is that the sterilization bench, the storage and the hand wash point become a defined work zone, not a leftover corner next to the staff room.

Every extra metre between a room and its supplies is paid for at every turnover, all day. A corridor that saves construction cost by being tight will be walked thousands of times a year, usually by the lowest paid and busiest people in the building. Draw the journey lines on the plan before the walls go up: assistant to sterilization, hygienist to storage, dentist between rooms, front desk to the clinical corridor. Where the lines bunch up is where you need width, and where they cross clinical and public territory you need a door.

Layouts that keep the core compact and clustered are usually the same layouts that make staff travel and supply routes short, and that is not a coincidence.

A floor plan can shorten a walk, screen a conversation and give each role a defined territory. It cannot decide how many assistants a practice runs with, whether hygiene shares a room with another provider, or how a team divides tasks between people. Those are staffing decisions that vary by practice and state, and the profession's practice resources cover the business and compliance side while leaving the room count to the people who will work in it. Walk the route yourself before signing the drawings.

About the ADA practice resource

The American Dental Association publishes a Practice collection at ada.org, described as a curated set of tools, resources and information for dentists managing a dental practice. It covers insurance guidance and industry standards intended to support patient safety and satisfaction. It does not publish a staffing template or room schedule, and it is not a planning document.
