Planning the treatment room: chair position and equipment

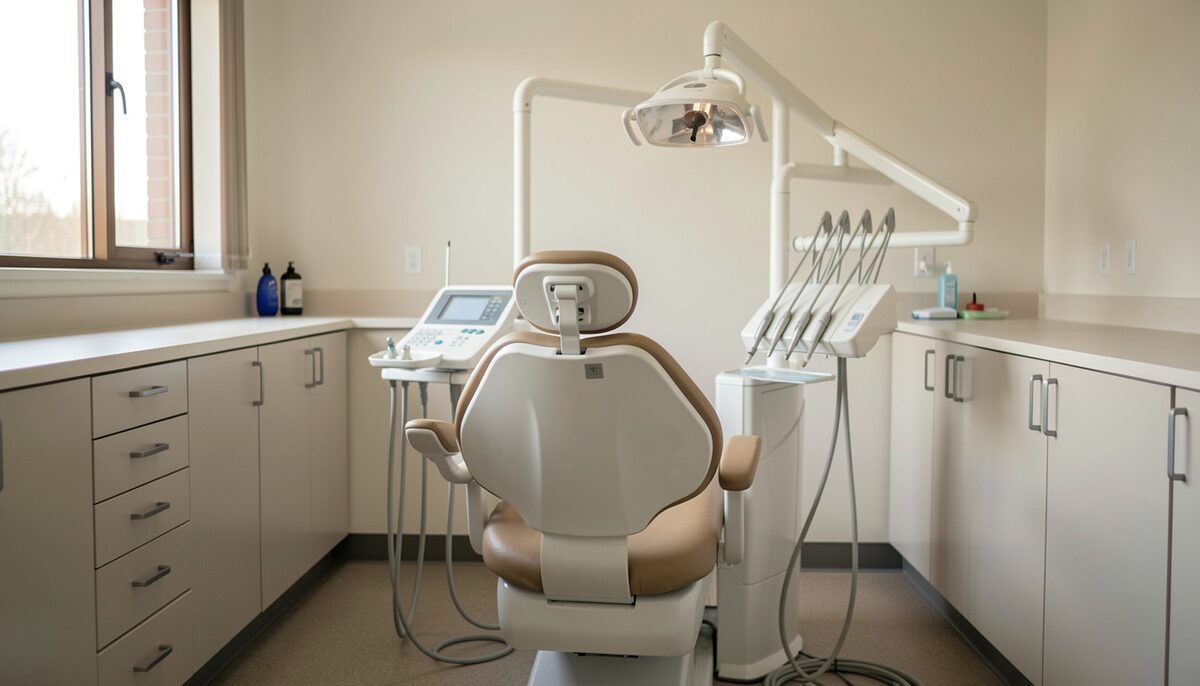

The chair orientation sets the room's axis. In most North American practices the chair faces away from the entry door, so a patient walking in sees the back of the chair rather than a face, and so the corridor never looks straight down a patient's throat. The dentist then works from a stool positioned behind and slightly to one side of the headrest, which means the delivery system and the assistant's zone both fall on the same side of the chair.

That single decision fixes where the windows should not be. A chair pointed at a west-facing window puts the dentist's eyes into glare for the last two hours of the afternoon, and no amount of blinds fully solves it. The layout and room dimensions page does not publish operatory dimensions, so treat the orientation rule as a design convention rather than a code figure, and confirm local requirements with the authority having jurisdiction.

Equipment arms come in over-the-patient, side-delivery and rear-delivery configurations, and the choice is largely a function of how the dentist prefers to work and how much the room can carry. An over-the-patient arm crosses the patient's chest, which keeps the assistant close but puts tubing in the patient's line of sight. A side-delivery unit parks the instruments at the dentist's left or right hand, which frees the patient's view but pushes the assistant further back.

Whichever arm is chosen, the services have to arrive somewhere: vacuum, compressed air, water, drain and power. These are usually brought up through the floor or down through a ceiling-mounted column, and the decision is made early because it determines the slab penetration or the ceiling structure. Coordinate the arm position with equipment utility rough-ins before the drawings go out for permit, because moving a vacuum line after the floor is poured is a demolition job, not a design change.

Clearance is not a single number. It is the sum of four movements: the dentist's stool swing, the assistant's stool swing, the patient's entry and exit path, and the transfer path for anyone arriving in a wheelchair or on a stretcher. A room that satisfies the first three can still fail the fourth, and the fourth is the one that tends to get tested by a real patient on a real Tuesday.

Measure from the chair's centreline rather than from the wall. The dentist's zone sits behind the headrest, the assistant's zone sits opposite, and the entry path runs along the side of the chair that the patient uses to sit down. Draw those three bands on the plan at full body width before you place a single cabinet.

Not every patient steps into the chair. Some arrive in a wheelchair, some need a hoist, and some need a companion in the room for the whole appointment. The transfer point needs a clear approach on the side of the chair the patient will use, and it needs enough room for a second person to stand and assist without blocking the door.

That approach distance is where equipment transfer clearances become a planning input rather than an afterthought. If the room is tight, the transfer side is the side you protect and the storage side is the side you shrink.

Cabinetry is usually placed last and it is usually placed wrong, because it is drawn along the walls the room happens to have rather than along the paths the staff actually use. The assistant's reach envelope is the governing constraint: anything the assistant needs mid-procedure has to sit inside a comfortable arc from the assistant's stool, and anything outside that arc becomes a reason for the assistant to stand up and interrupt the procedure.

Think in reach zones for staff rather than in metres of counter. Consumables used every appointment belong in the primary zone, restock belongs in the secondary zone, and anything that gets touched once a week belongs anywhere else, including outside the room. Base cabinets under a worktop are cheap storage and expensive ergonomics if they force a bend every ten minutes.

From the supine position the patient sees the ceiling, the light, the arm and whatever is on the wall behind the dentist. That view is the entire interior experience of the appointment, and it is often decided by accident. A ceiling with a recessed light directly above the headrest produces glare; a wall of open shelving produces visual noise at the exact moment the patient is trying to relax.

Planning for comfort at the chair is not decoration. It is a placement decision: what the patient's eye lands on, how far the door is from the headrest, and whether the room sounds like a corridor. None of these are finish selections, and all of them are made at the same time as the chair orientation, because the chair orientation is what points the patient at the view.

The sequence matters. Chair orientation fixes the dentist's and assistant's zones. Those zones fix where the equipment arm can be delivered from. The arm fixes where the services must surface. The service position fixes where the cabinetry can stand without blocking access to a floor box or a ceiling column. Change the chair orientation late and every one of those decisions reopens.

This is why the room is drawn as a whole rather than assembled from catalogue items. An equipment planner who is handed a finished shell and asked to fit a chair into it will always find a way, but the way usually costs a compromise: a shorter counter, a longer hose run, a transfer path that only works if the door is closed.

Dental professionals work with a range of workplace hazards, and the Occupational Safety and Health Administration lists bloodborne pathogens, pharmaceuticals and other chemical agents, human factors, ergonomic hazards, noise, vibration and workplace violence among them. The agency notes that there are currently no specific OSHA standards for dentistry, and that the hazards applying to dentistry are addressed in its standards for general industry.

What that means for the room is that the safety obligations arrive through the general industry route rather than through a dentistry-specific code, and the room has to be laid out so those obligations can be met in practice: a handwash sink the clinician can reach without leaving the chairside zone, surfaces that can be cleaned between patients, and a circulation path that keeps clean and contaminated movements separate. The OSHA dentistry page groups its guidance under standards, enforcement, hazard recognition and control, and worker rights, and it links to a compliance quick start for the health care industry and to guidance on reducing bloodborne pathogen exposure. It does not publish room dimensions, so the dimensional work stays with the design team and the local authority.

Take the plan you have and trace the four paths on it: the dentist's stool, the assistant's stool, the patient's entry, and the transfer approach. If any of those four lines crosses a cabinet, a door swing or another person, the room is not finished, whatever the finishes look like. Do that tracing before the equipment order goes out, because the order is where the cost of a late change becomes visible.
