Designing the sterilization area: flow and separation

The separation exists because contamination moves on hands, on gloves, on tray edges and in aerosol. If a cleaned instrument can be set down anywhere near a dirty tray, the cleaning step is undone in a second. A two-zone room, often called dirty to clean or soiled to sterile, gives every object a defined place to be at each stage, so a staff member can see at a glance whether a surface is safe to touch with bare hands or whether it needs gloves. The same logic applies to the people: one direction of travel for the person handling contaminated items, another for the person handling packaged sets, and as little backward traffic as the room allows.

The sterilization area belongs with the clinical core, close enough to the treatment rooms that trays are carried for seconds rather than minutes, and separated from the front office, the staff room and any area where food is handled. It also needs a door or a clear threshold, not an open alcove off a corridor, because an enclosed room is easier to ventilate and easier to keep at the right air pressure. Positioning the room inside the overall zoning of clinical areas matters more than the room's own size: a generous sterilization room in the wrong corner still produces a long walk with a dripping tray every time an assistant clears a surgery.

Picture a linear bench with a dividing element. On the soiled side you place a receiving counter, a sink, an ultrasonic cleaner or instrument washer, and space for bagging waste, plus storage for dirty trays waiting their turn. On the clean side you place the sterilizers themselves, a cooling area, a packaging station, a handwash sink and cabinets for wrapped and pouched sets. The divider can be a full-height cabinet bank or a solid screen, and it should interrupt both the counter and the sightline, so nothing can be passed across the bench from soiled to clean. Where the room is too narrow for full separation, the recommended fallback is a single bench worked strictly left to right, dirty at one end and sterile at the other, with a physical marker between the two halves.

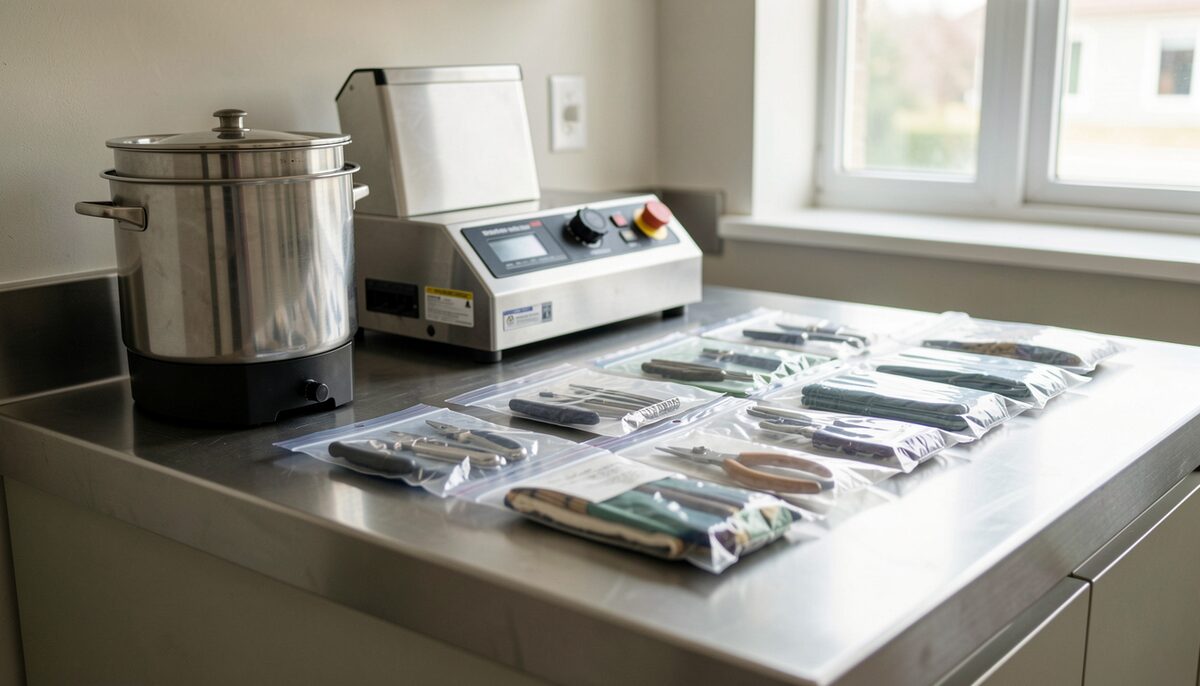

A working area generally contains a handwash sink on each side, a deep sink for manual cleaning, an ultrasonic cleaner for hinged and slotted instruments, a washer-disinfector where the volume justifies it, a sealed pouch or cassette system, one or more autoclaves, a drying and cooling surface, and secure storage for sterile stock. Which autoclave depends on the case mix, the cycle times and the peak turnover the practice expects, and on the services the room can physically support, a question taken up in sterilizer specification. Instruments also need inspection before packaging: hinges, ratchets, lumens and cutting edges all fail silently, and a station with good light and magnification is part of the equipment list, not an afterthought.

There is no universal number, and the page that sets out the federal position does not publish one. The honest method is to count the sets used in the busiest half day, add the sets held in reserve, and divide by the cycle time plus the loading, unloading and cooling time for a single unit. Two smaller units also give redundancy, so a breakdown does not stop the practice, and a benchtop model used for handpieces alone lets the main unit run full loads on instruments. Reserve space beside each machine matters as much as the machine itself: a hot cassette needs somewhere to sit that is not the packaging paper.

Counters should be smooth, non-porous and resistant to repeated disinfection, with coved joints where the bench meets the wall so debris cannot collect in a seam. Cabinets should be closed, not open shelving, and wall and floor finishes should tolerate moisture. Manual cleaning is the step most often squeezed, so the sink deserves a real footprint: a deep bowl, a separate handwash basin, and space either side to set a tray down without touching a clean surface. Separating the manual cleaning zone from the packaging zone with a solid barrier keeps splash and aerosol where the dirty work happens.

Cleaning and sterilizing generate aerosol and heat, and the room needs air changes that remove both. Exhaust at the source, whether over the ultrasonic or over the sink, captures vapour before it reaches the rest of the suite, and the room should sit at neutral or slightly negative pressure relative to clean corridors. Enclosure of the sterilizer, local exhaust or a canopy all belong in the plan, and the whole arrangement has to satisfy the mechanical requirements the jurisdiction applies, which the guide on ventilation code requirements walks through. Note that the federal dentistry page does not issue room pressures or air change rates; it points instead at the general industry standards, so the numeric limits come from the applicable mechanical code and from the equipment manufacturer's installation instructions.

It changes the number of trays in circulation. Every extra step between a surgery and the sterilization bench means more dirty trays waiting, more clean sets in transit, and more chance of an instrument being set down in the wrong place. Keeping the distance to treatment rooms short lets a practice run with fewer instrument sets and fewer storage cabinets, which can be cheaper than enlarging the sterilization room itself. A pass-through window between the sterilization area and the corridor is not a substitute for a closed room, but it does reduce the number of times a door is opened with gloved hands.

Bench space, almost always. Practices plan the equipment and forget the landing zones: the tray waiting to be processed, the pouch that has just come out hot, the box of sterile sets being restocked. A second failure is storage: without closed cabinets on the clean side, sterile packs end up on an open shelf where they are handled repeatedly and lose their integrity. A third is the handwash sink, which gets blocked by a drying rack within a month if it is not given its own clear metre. Any one of these turns a correctly separated workflow back into a single crowded counter.

Walk the room before the drawings are signed, carrying an imaginary dirty tray in one hand and a sterile pouch in the other, and see whether the route holds at 9am and again at 4pm when the bench is full. The federal dentistry overview sets out hazards, standards and compliance assistance at https://www.osha.gov/dentistry, and the section on infection prevention and control in dental settings is the place to confirm which of the practices described here are required rather than merely prudent in a given jurisdiction.
